Blower Moto/HVAC Blower Assembly/Heater Blower Assembly/Blower Unit

In a vehicle’s HVAC system, the Blower Motor (also referred to as the fan motor) is the core power source responsible for driving the entire air conditioning and ventilation system

1. Main purposes

Power source for air circulation: The blower serves as the “lung” of the entire air conditioning system. Its primary function is to propel air through the HVAC case, drawing in fresh outside air or recirculated air from the vehicle interior and delivering it under pressure to various air outlets.

Heat and cold exchange: It is responsible for blowing air through the evaporator for cooling or through the heater core for heating. Without the airflow of the blower, the cold or heat generated by the air conditioning system cannot be transferred to the cabin.

Defrosting and defogging: By blowing dry hot air onto the windshield, the blower plays a crucial role in driving safety during winter and rainy days.

2. Its position in automotive air conditioning components

The core of the end-effecting component: Compared to the compressor (responsible for refrigerant circulation) and the condenser (responsible for heat dissipation), the blower is the executing component directly linked to passenger perception. It is the only power source in the air conditioning system responsible for airflow delivery.

Determinants of comfort: The performance of the blower (air volume, operating noise, vibration control) directly determines the heating/cooling efficiency of the vehicle’s air conditioning system and the passengers’ experience of quietness.

Consumable parts and maintenance highlights: Due to long-term high-speed operation and potential exposure to dust in the working environment, the blower is a very common replacement part in the aftermarket. If it malfunctions (such as making abnormal noises, not running, or reducing air volume), even if the entire air conditioning system functions normally in terms of cooling, the interior of the vehicle cannot be cooled down.

3. Component composition

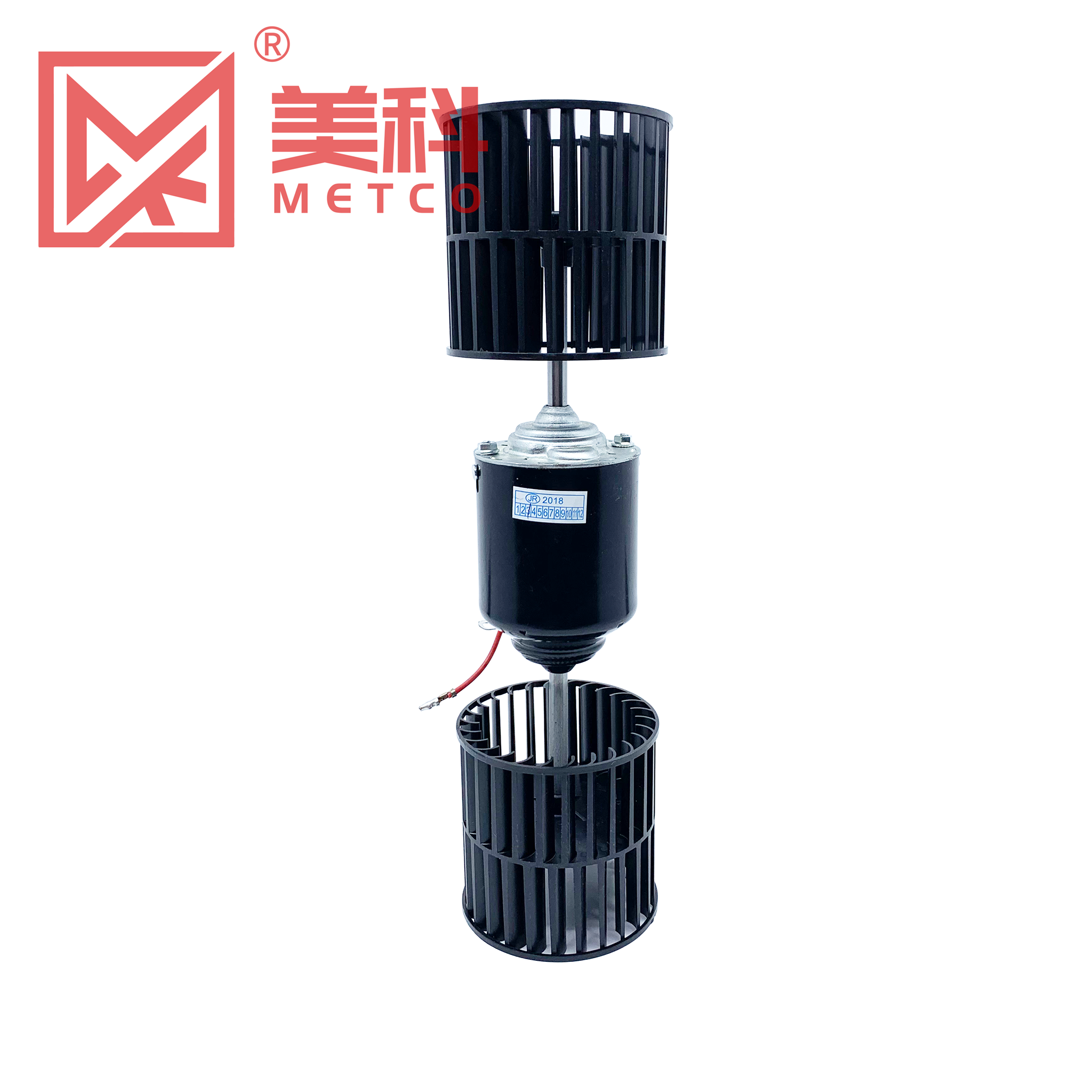

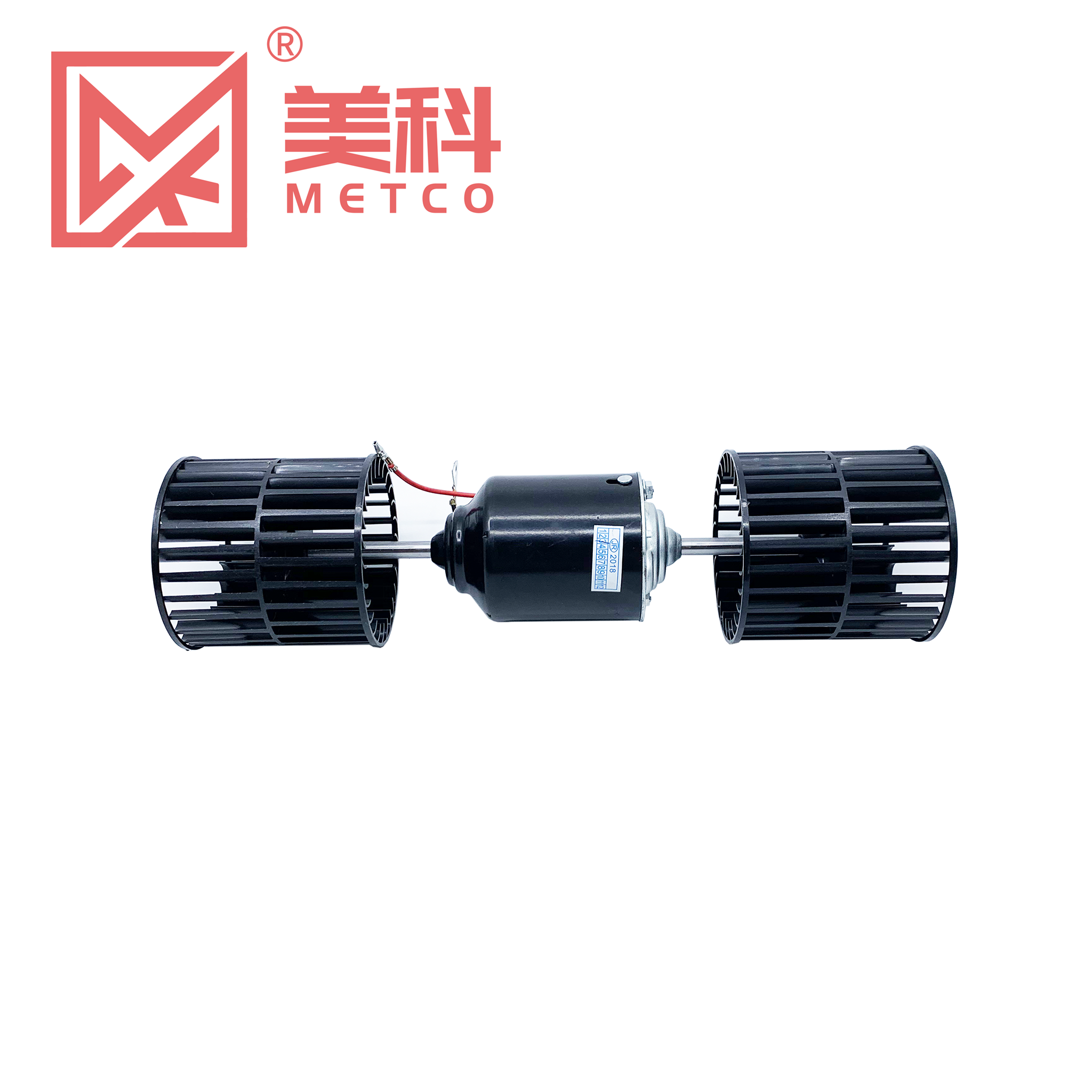

The commonly mentioned Blower Assembly generally consists of the following three key parts:

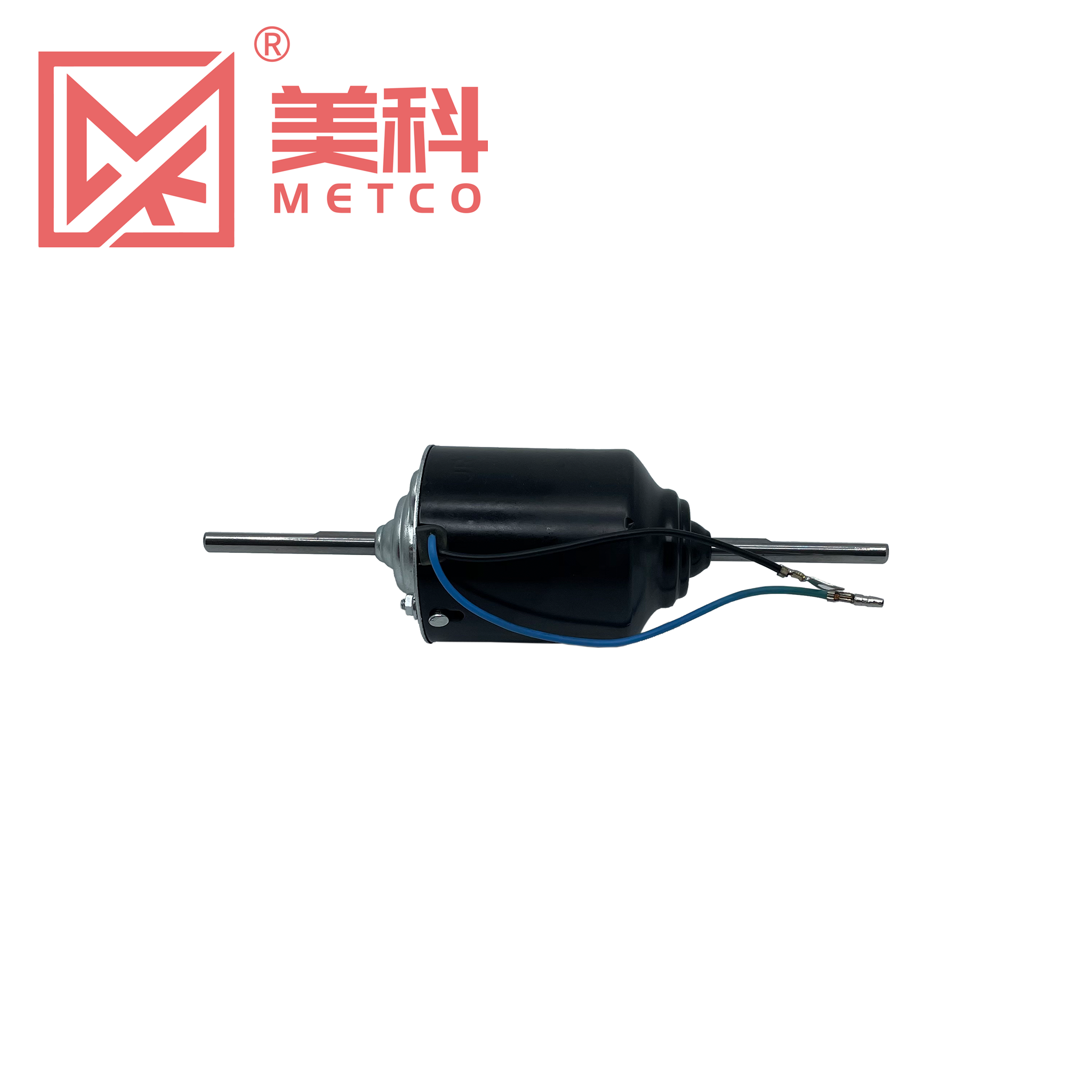

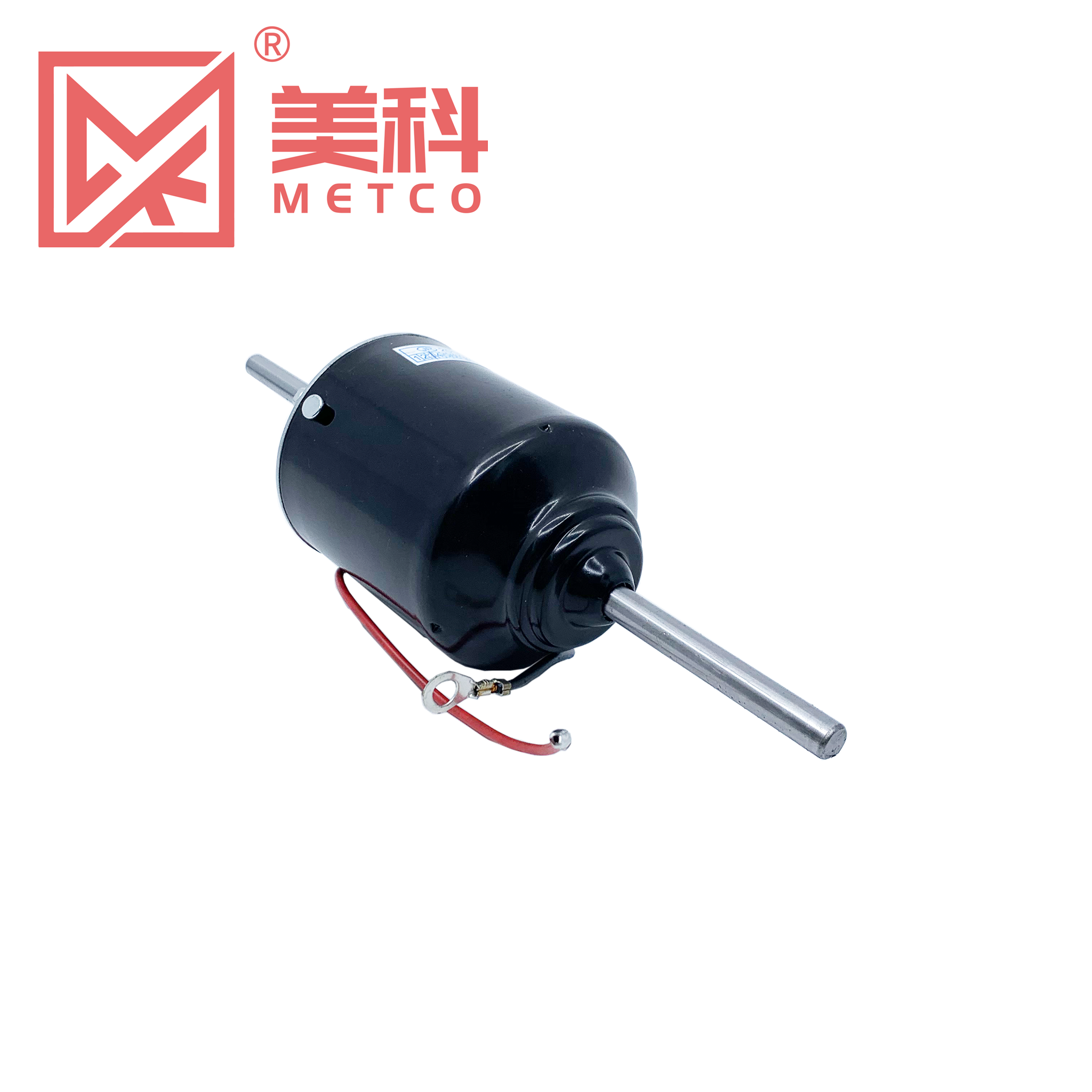

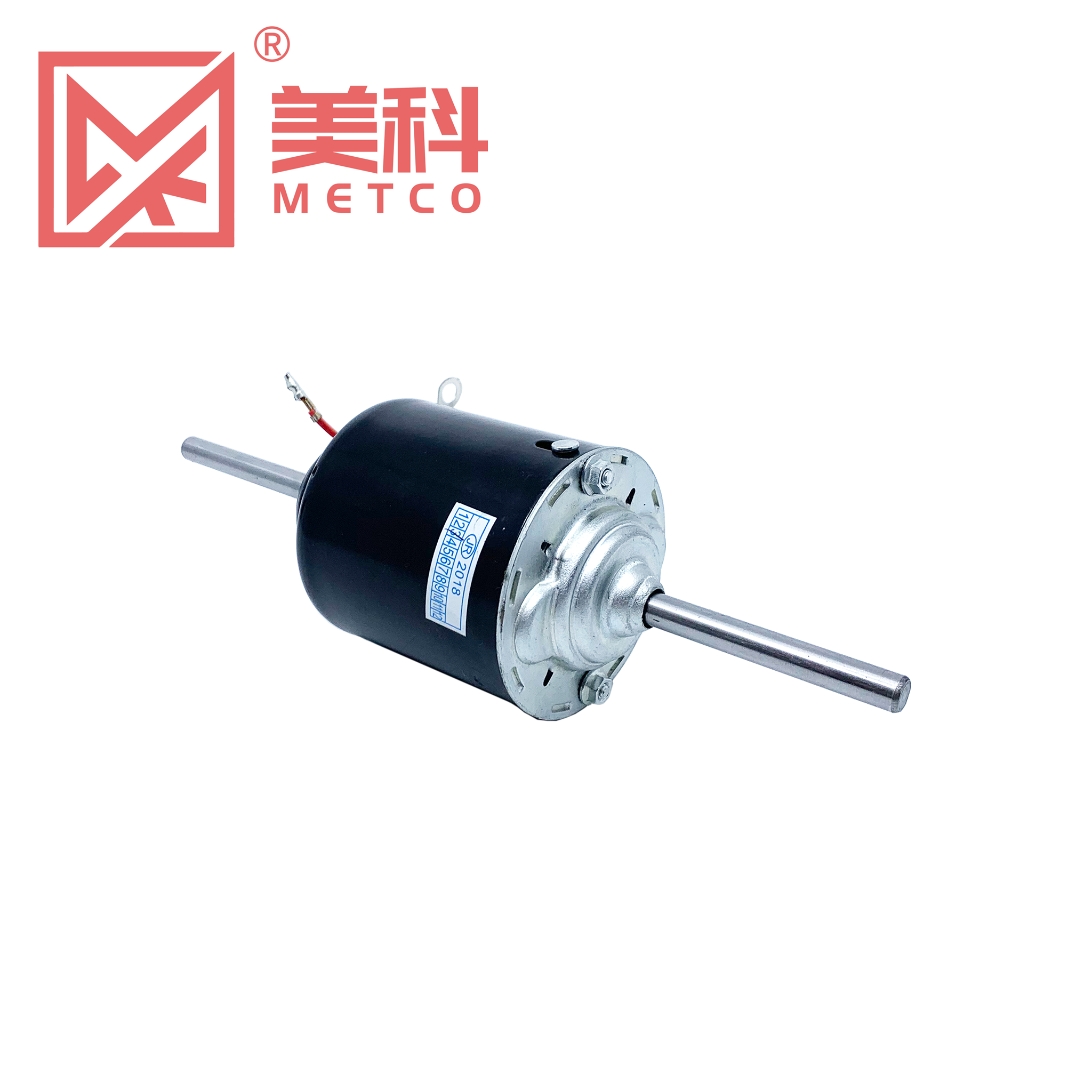

Motor: A DC motor that provides rotational power.

Impeller/Cage: Typically featuring a squirrel-cage design, responsible for agitating the air.

Housing: Directs airflow towards the interior of the air conditioning unit.
